PVC wall panel and ceiling panel Extrusion Machine

Equipment details

Our hot machine



PVC Ceiling Panel Machine

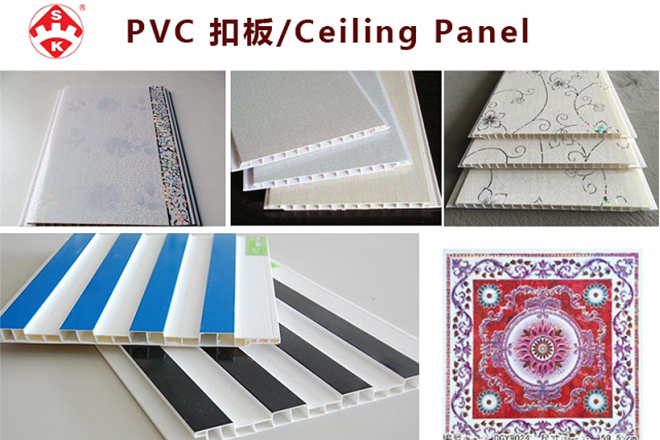

pvc ceiling panel machine is used to produce pvc panel with hollow structure which widely used as decoration material of wall and ceiling roofing. It's considered to be a better choice compared to traditional ceiling materials because of its superior durability. It can last for years without warping or bending

It produce PVC ceiling wall panel with different size, such as 200mm, 250m,300mm, 400mm and so on.

 What is Application of final products of pvc ceiling panel machine

PVC ceiling panels can be used in any room of your home, from your kitchen or bathroom, shower, wet room to bedrooms and playrooms. As well as a fantastic look, our PVC cladding panels are an easy to fit, functional, low maintenance alternative to painted ceilings or walls. Because of their tongue and groove interlocking system, our cladding panels are quick and easy to install, creating an attractive finish at a great price. These panels are ideal for ceilings and walls alike, an ideal alternative to tiling.

What machine needed for production of PVC ceiling wall panel:

- PVC mixer
- PVC panel extrusion line
(Including autoloader, conical twin screw extruder, mould, vacuum calibration chamber, hauling machine, auto cutter- stacker)
- hot stamp printer or two color printing line or lamation
- PVC pipe crusher& PVC miller
- Air compressor
- Water chiller (optional)

- high glossy two color PVC ceiling wall panel printing line







What included in pvc ceiling panel machine ?

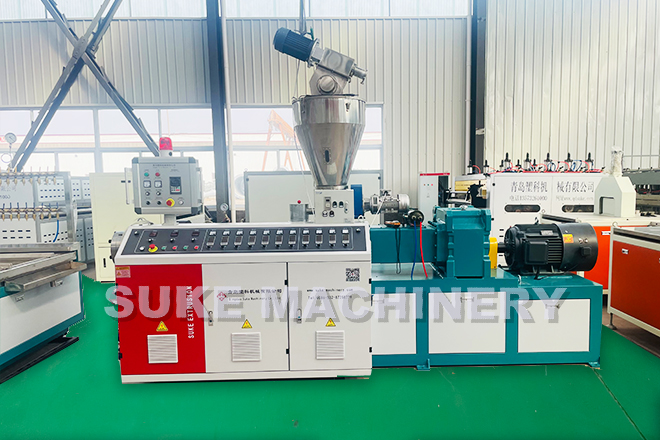

1. Twin screw extruder

Technical Parameters:
a. Main motor :37kw Siemens Brand.
b. Inverter: schneider
c. Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
d. Vacuum pump : Double station.
Extrusion System



2. Extrusion Mould

Technical Parameters:
a. Special design for PVC profile
b. Mirror polishing Cr plating,
c. Three dimensional flow simulation software design.

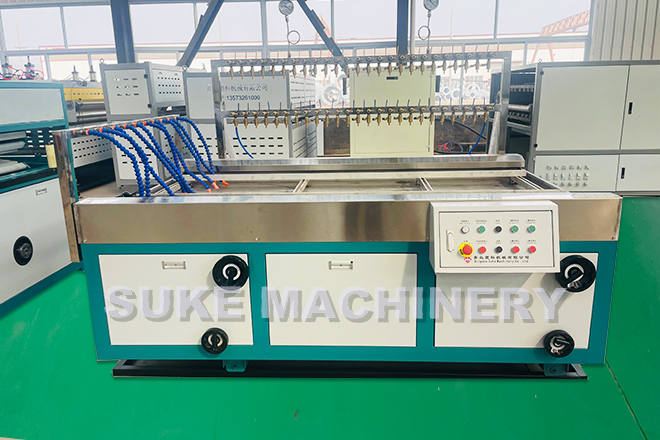

3. Calibration Platform:

a. Up and down, left and right manually adjusted

b. With Infrared device, guarantee speed synchronously with Haul-off speed.



4. Haul-off Machine

Traction power: 1.5kw

Traction belt: rubber



5. Hot stamping machine online

Technical parameters:
a. It has two function: hot stamping and laminating
b. Working thickness and width can be adjusted
c. Equipped with foil tension force control system.

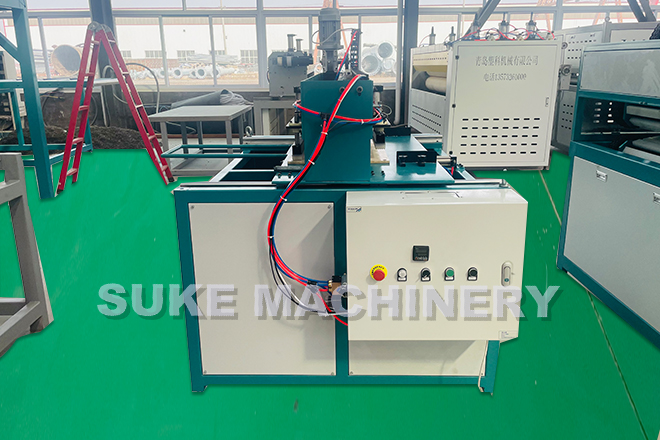

 6. Cutting Machine



Qingdao suke Machinery Co., Ltd. as a professional manufacturer of plastic extrusion equipment, we have rich experience in pvc ceiling panel machine. We are willing to provide professional and targeted plans according to customer needs. Welcome new and old customers to contact us at any time
